Matica

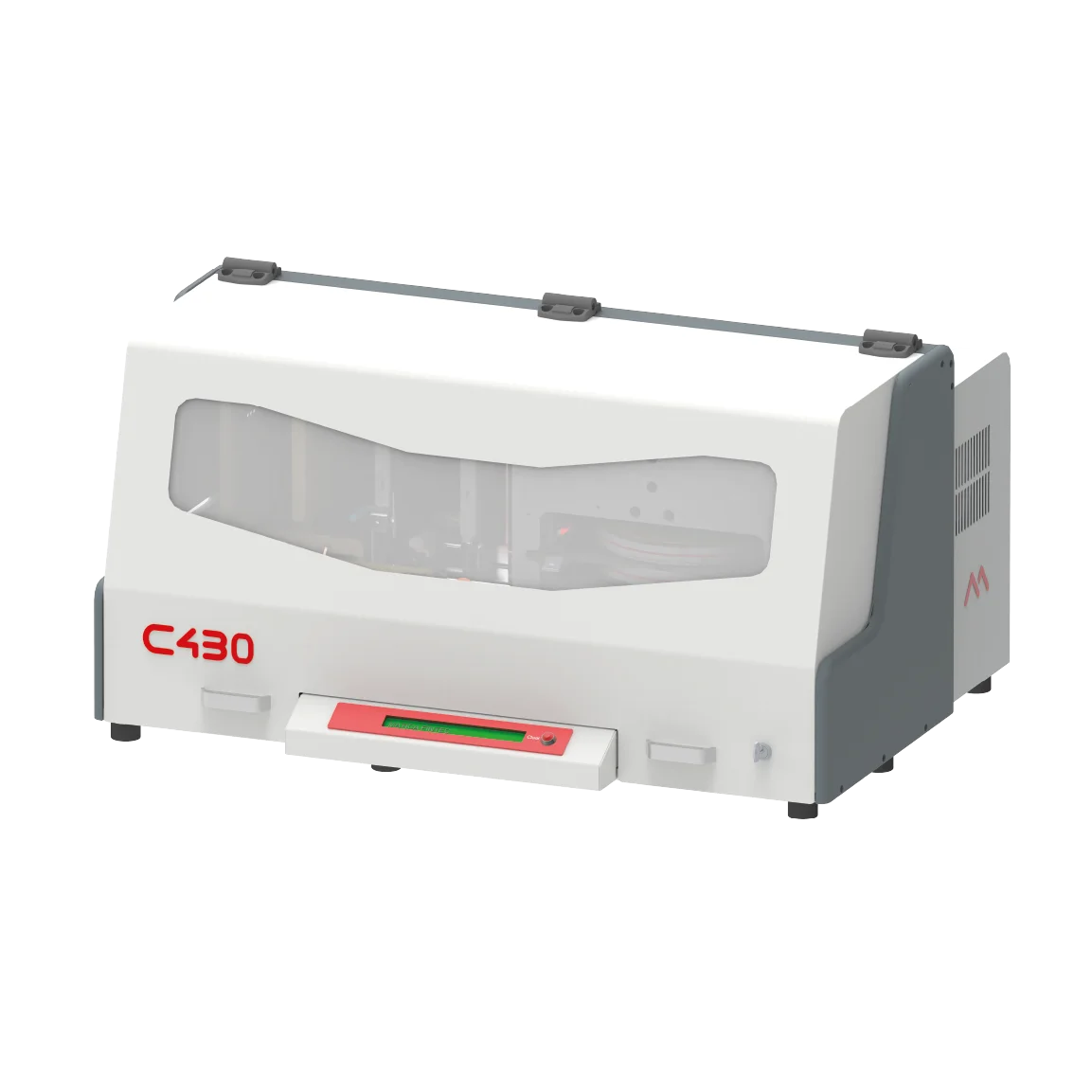

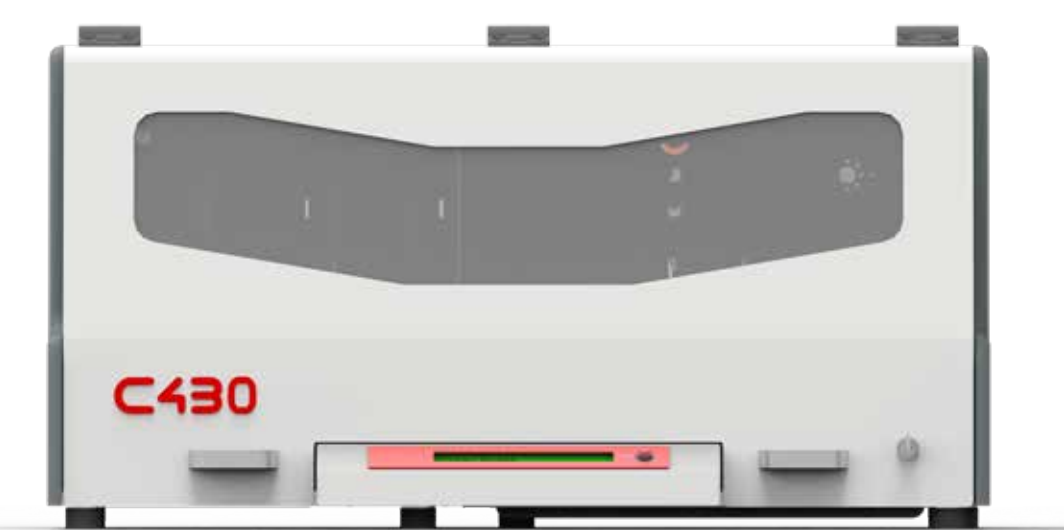

Matica C430 Heavy Duty Metal Plate Embosser

Matica C430 Heavy Duty Metal Plate Embosser

SKU: MPE-X001

Regular price $33,178.00 CAD
Regular price Sale price $33,178.00 CAD
Sale Sold out
Shipping calculated at checkout.
Feed Type
Connectivity

OVERVIEW

Step into a new era of precision and efficiency with the Matica C430 Heavy Duty Metal Plate Embosser. Engineered for versatility and reliability, the C430 empowers you to effortlessly emboss a diverse range of metal plates, from rugged industrial tags to intricate identification plates. This heavy-duty embosser combines speed and accuracy, ensuring swift production without compromising on quality. Its intuitive interface and user-friendly software partnered with its robust build and advanced features make the embossing process seamless.

Specifically engineered for heavy duty, continuous plate production, the C430 is a strong, reliable system for embossing plates and tags, and can handle a huge variety of sizes, materials, shapes and thicknesses. The C430 is designed for the personalization of plates of various materials and thicknesses, including steel, iron, aluminium, bronze and can guarantee in all cases outstanding quality.

The C430 comes equipped with an integrated, manually adjustable automatic plate feeder that holds up to 350 plates (0.5 mm thickness). The C430 is suited for continuous medium to high volume production process. The system can easily accommodate various sizes and shapes of plates and can be efficiently used to emboss different identification plates within the same production facility.

 Technology
  • Stamping (Embossing & Debossing)
  • USB interface (USBtoCom driver)
  • Protocol: Xon/Xo, CHIP, L2, SEP, Multi Embosser
Speed & Character size
  • Up to 200 plates per hour (embossing 45 characters)
  • Recommended Operation: 16 hours per day
  • Characters: 3 mm, 4 mm, 5 mm, 6mm, 8 mm, 12 mm.
Capacity
  • 350 plate (0.5 mm) input hopper
  • External Collection Tray (FILO) output hopper
  • Non - embossing area: 4mm from clamp side
Plate Size
  • Width: 20-90 mm (0.79-3.54 inches)
  • Height: 50-120 mm (1.97-4.72 inches)
  • Thickness: 0.4-0.9 mm (0.0157-0.0354 inches)
Optional Additions
  • Automatic or Manual Feeding
  • Ethernet connectivity
  • LAN

If you require a configuration not offered online, please contact us directly at 1-888-983-2299 for a custom quote!

WARRANTY DETAILS

One year or 500,000 plates warranty, fully supported by IDEXPERTS® out of our Delta depot. Client is responsible for shipping printer to IDEXPERTS® (with provided case number), but warranty service includes ground shipping (uninsured), back to the client.

C430 Specification Sheet
