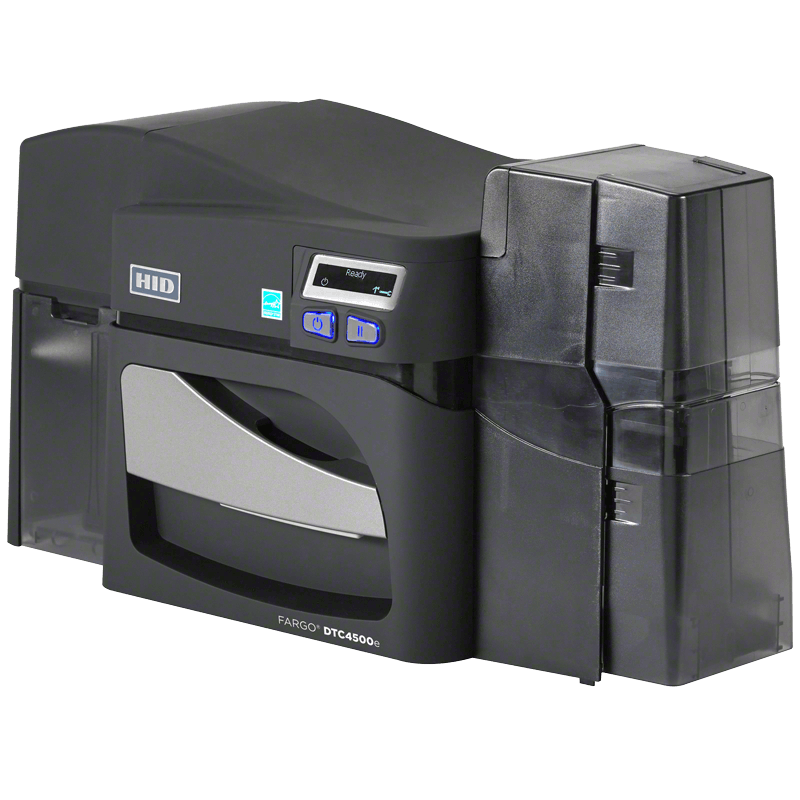

Fargo DTC4500e Direct-to-Card Printer

Fargo DTC4500e Single- or Double-Sided, Direct-to-Card Printer

OVERVIEW

The HID Fargo DTC 4500e builds on the features available in the DTC1250e and 4250e printers, to add even more features for producing longer lasting cards. Upgradeable to meet different printing requirements, the printer is also easily integrated into most HID ecosystems to provide an end-to-end printing, encoding, and laminating machine.

The DTC4500e has a laminator, which adds an extra layer of protection to your card's image lifespan. Lamination allows you to use the card over many years, without worrying about the card wearing out, or having to be replaced frequently.

The DTC4500e uses large capacity ribbons, so you change supplies less often than with smaller units. The DTC4500e also has two input hoppers, allowing you to have either double the amount of card stock loaded, or switch between two different card stock (without any unnecessary card handling).

With proper setup help from IDExperts, the DTC4500e runs well in most printing environments. Regular cleaning helps keep your printer running well, reducing the time potentially needed for technical support. All printers purchased from E-CARD come with lifetime phone and email support, above and beyond the manufacturer warranty provided with the printer (and supported by E-CARD).

Print Speed

• Single-sided monochrome black: 6 seconds per card / 600 cards per hour
• Single-sided colour: 16 seconds per card / 225 cards per hour
• Double-sided (YMCKOK): 24 seconds per card / 150 cards per hour

Security Options

• Supported smart card and magnetic stripe technologies: 125 kHz (HID Prox) reader; 13.56 MHz (iCLASS® Standard/SE/SR/Seos®, MIFARE Classic®, MIFARE Plus®, MIFARE DESFire®, MIFARE DESFire EV1, ISO 14443 A/B, ISO 15693) read/write encoder
• Contact smart card encoder reads from and writes to all ISO7816 1/2/3/4 memory and microprocessor smart cards (T=0, T=1) as well as synchronous cards
• ISO magnetic stripe encoding, dual high- and low-coercivity, tracks 1, 2 and 3

Card Capacity

• 200 card dual-input hopper
• 100 card output hopper

• 100 card reject hopper

Connectivity

• USB 2.0
• Ethernet

Card Types and Thicknesses

• CR80 and CR79
• 9 to 40 mil
• PVC or polyester cards with polished PVC finish
• HiCo magnetic stripe cards

• Smart cards

If you require a configuration not offered online, please contact us directly at 1-888-983-2299 for a custom quote!

WARRANTY DETAILS

Three-year depot warranty available on printer and printhead with completion of online printer registration. Two-year warranty standard on printer and printhead without online printer registration. Warranties are fully supported by E-CARD IDExperts out of our Delta depot. Client is responsible for shipping the printer to IDExperts (with provided case number) but warranty service includes ground shipping (uninsured) back to the client.
